FixakitchenMacadams mixer field note

Macadams mixer bearing service

Macadams mixer bearing repair and food grade grease service.

This field note covers a Macadams commercial mixer opened for mechanical service. The important repair lesson is simple: bearings and grease are not small details. They control shaft alignment, gear mesh, motor load, heat, hygiene risk and how long the mixer can survive daily bakery torque.

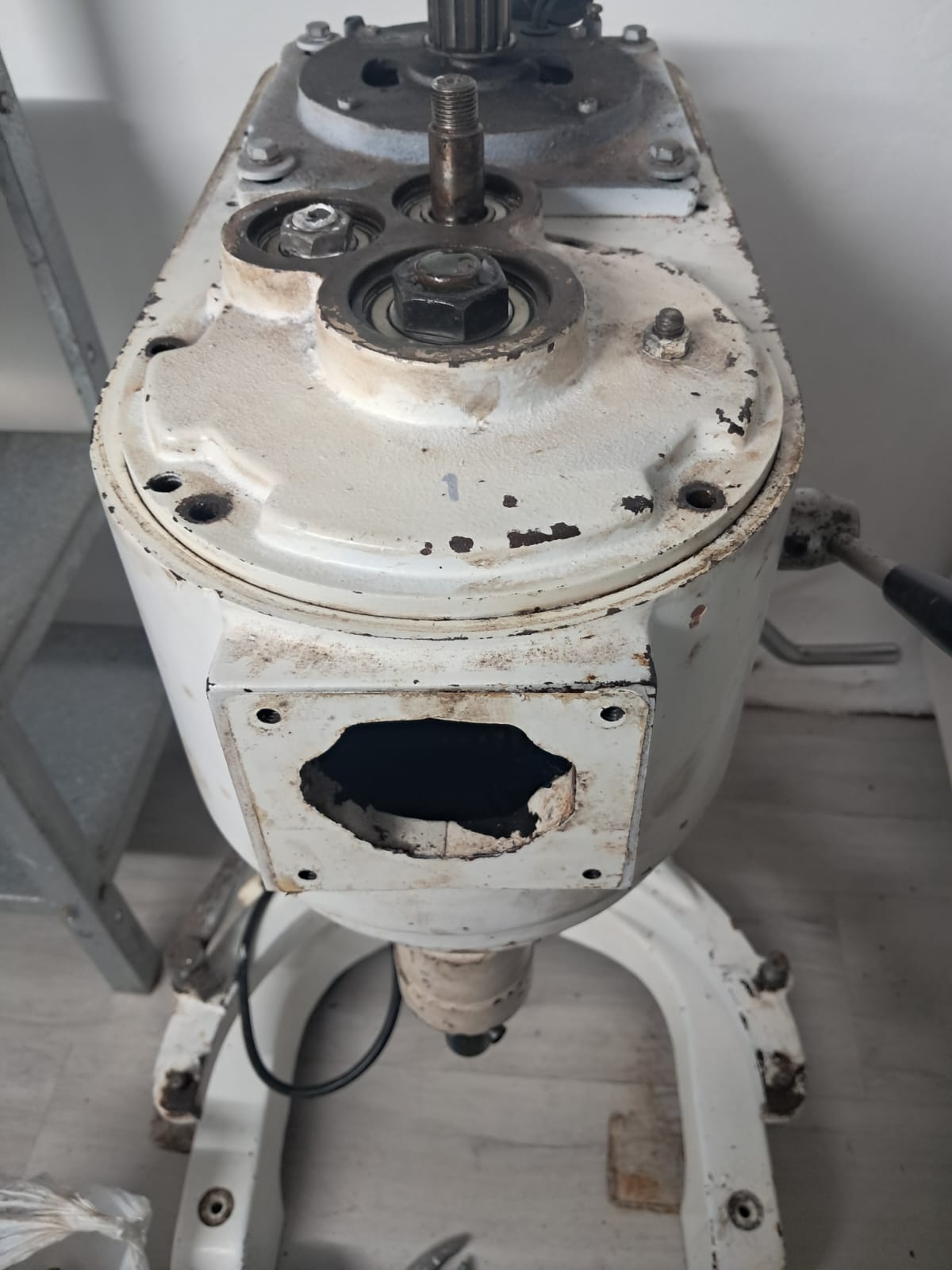

Macadams commercial mixer head opened for bearing and planetary drive inspection
Bearings control the geometry

A planetary mixer depends on concentric rotation. The shaft, bearing inner race, outer race and housing must hold the beater path in the correct position while dough or batter loads change every revolution. Once a bearing loosens, the shaft no longer runs true. That changes gear contact pattern, increases vibration and makes the motor work against mechanical drag instead of useful mixing work.

Why worn bearings damage more than themselves

A failing bearing creates radial play, axial movement, heat and metal debris. The first symptom may be noise, but the hidden damage is often worse: gears start meshing off-centre, seals lose contact, grease migrates away from the load zone and the motor current rises because the drivetrain is no longer turning freely.

Grease is an engineering part

Grease is not only there to make parts slippery. It forms a lubricating film between rolling surfaces, carries heat away from the contact area, resists wash-out and helps block moisture and flour dust from entering the bearing path. In food equipment, the grease must also suit incidental food-contact risk. That is why proper food grade grease matters in mixer heads and planetary assemblies.

Food grade grease selection

The grease must match the application: suitable base oil viscosity, thickener stability, water resistance, oxidation resistance and safe behaviour around food production environments. The wrong grease can soften, separate, run into the bowl area, attract flour dust or fail under load. A proper service uses grease selected for load, temperature, speed and hygiene requirements, not whatever is nearby on a shelf.

Cleaning before lubrication

Adding fresh grease over old contaminated grease is poor practice. Old lubricant can carry metal particles, flour dust, moisture and oxidised residue. Before reassembly, the bearing pockets, housings, fasteners and accessible gear areas must be cleaned so new grease is not immediately contaminated by the previous failure.

Repair lesson

On a commercial mixer, bearings are maintenance items, not afterthoughts. Replacing them at the right time protects the gearbox, shaft alignment, electrical load, seal surfaces and food safety. The repair is mechanical, but the outcome is operational: a quieter mixer, less heat, smoother load transfer and lower risk of breakdown during production.

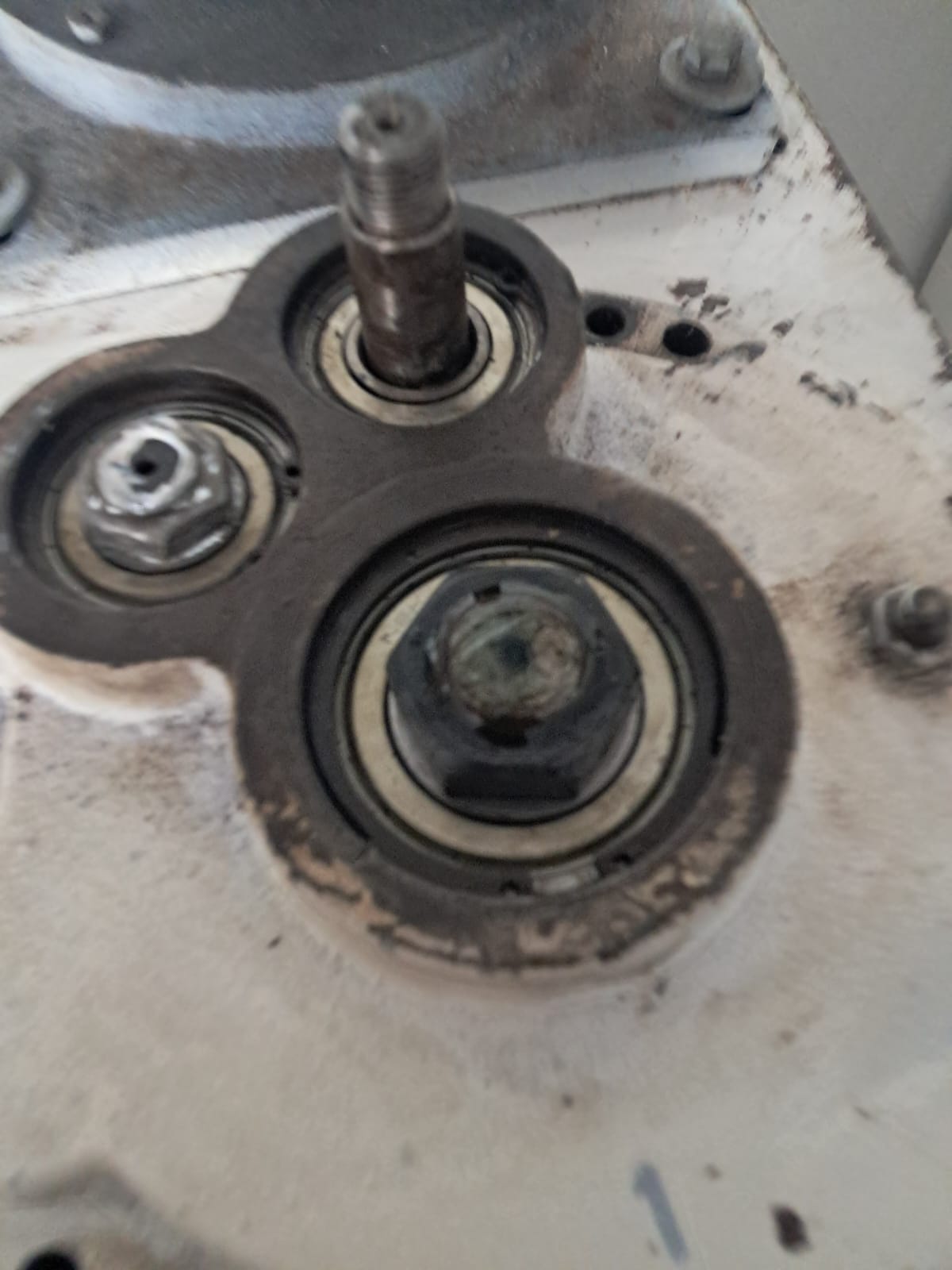

Close-up of Macadams mixer bearings and shaft during service
Bearing area: shaft support and load path exposed.
Macadams mixer head opened for planetary bearing inspection
Inspection: planetary head opened for service.

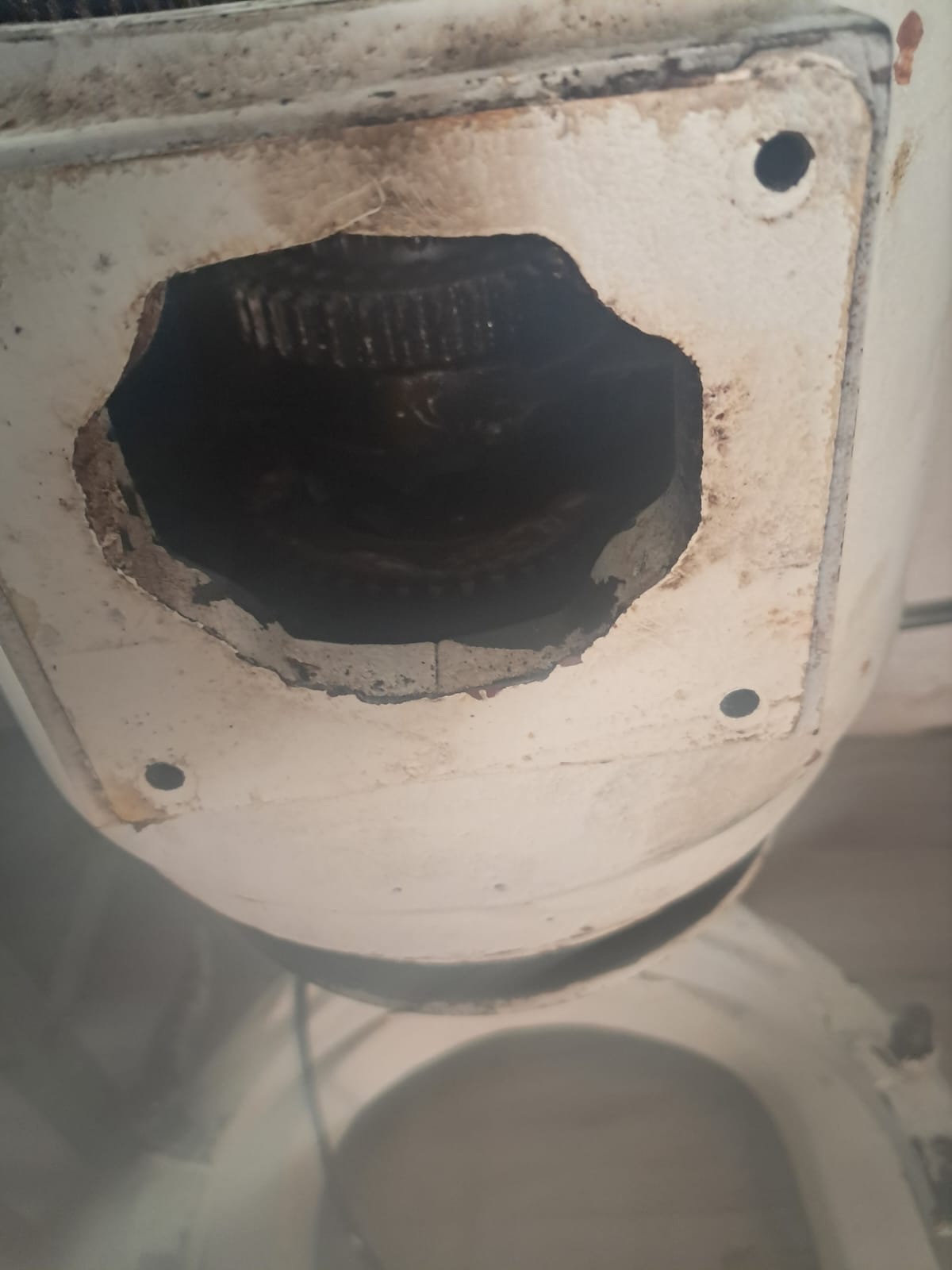

Macadams commercial mixer mechanical service detail
Service: bearing, housing and fastener checks.

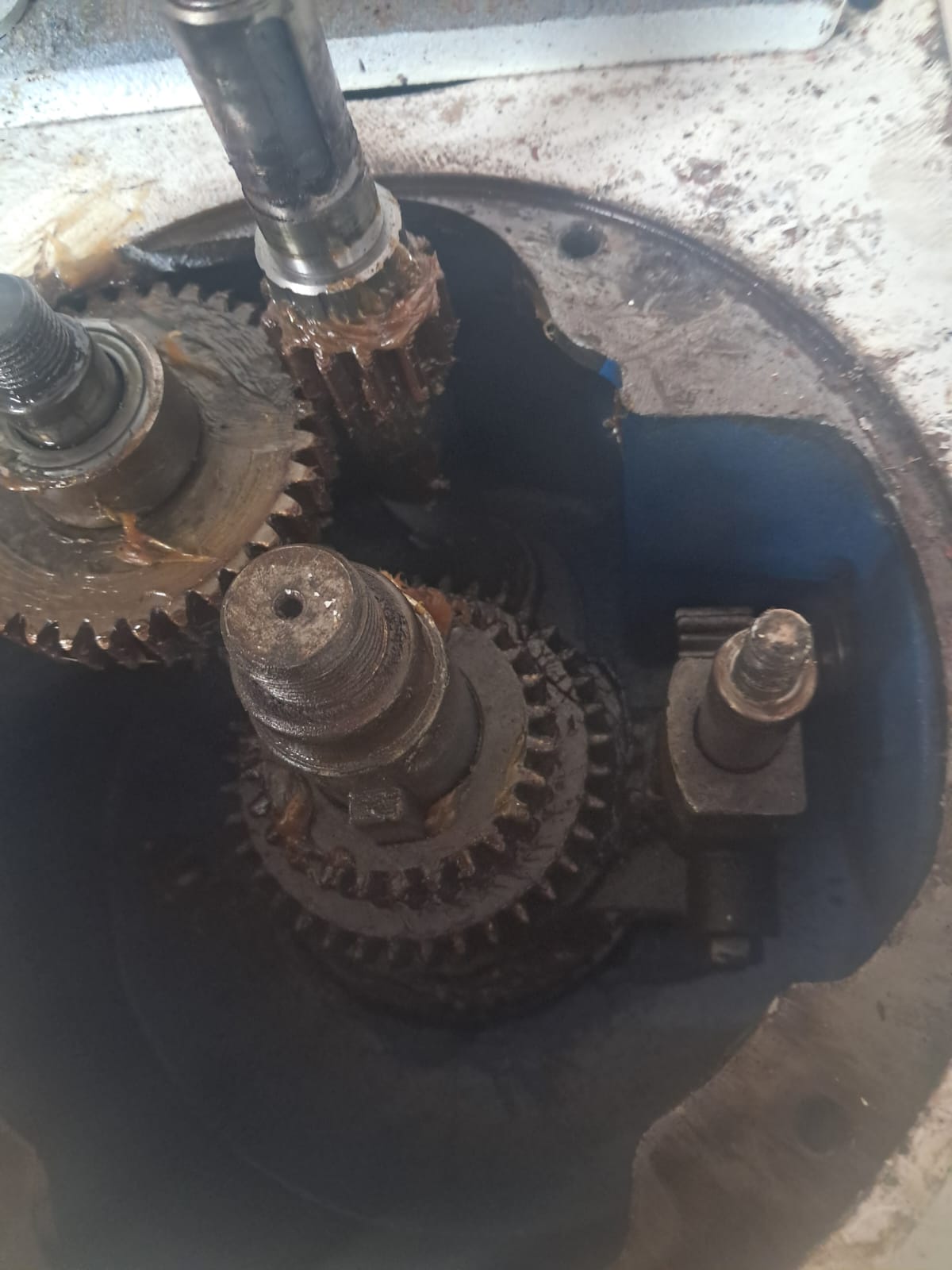

Macadams mixer repair detail showing drivetrain and bearing service area
Rebuild thinking: clean contact areas before lubrication.
